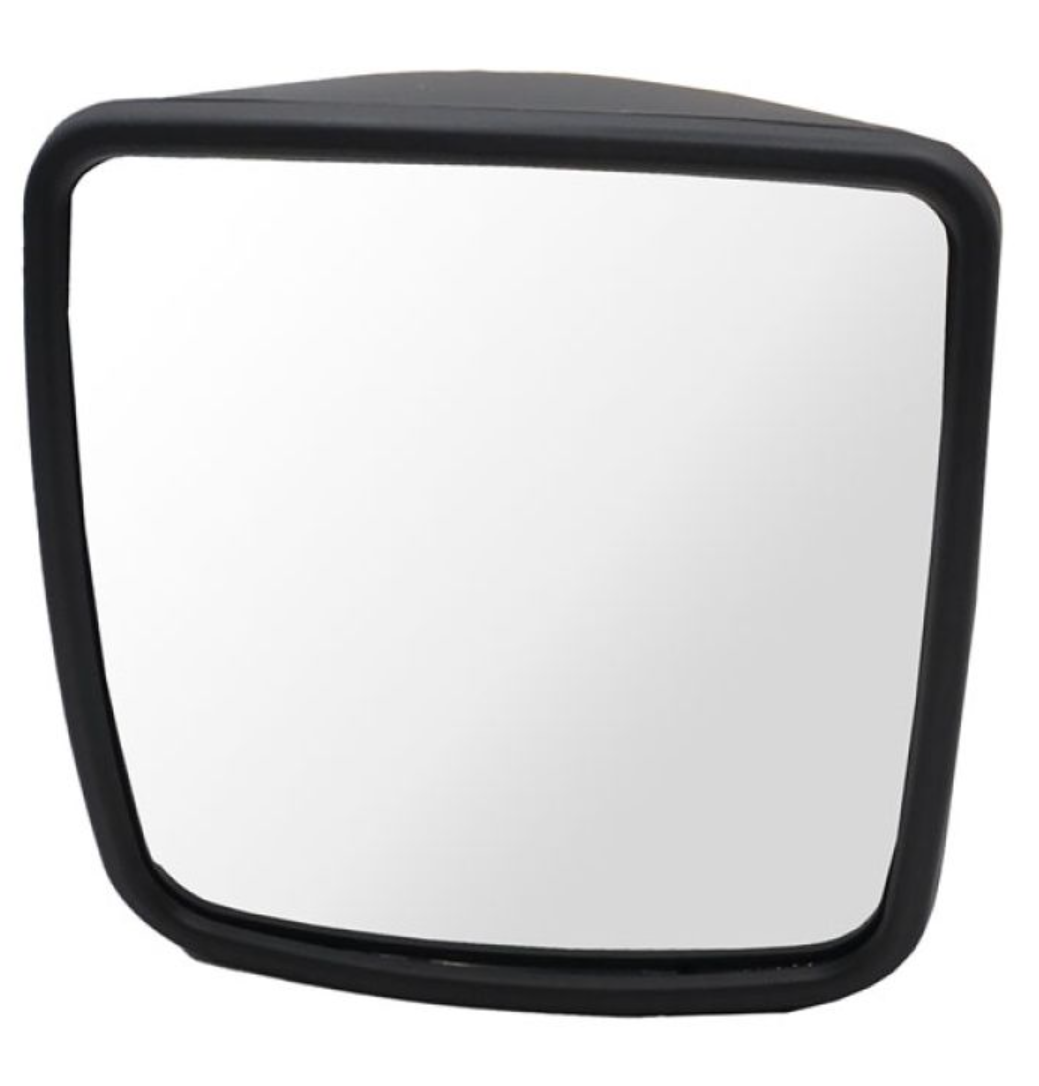

MAN TGL Wide Angle Mirror Head Non-Heated (Universal)
Couldn't load pickup availability
Premium replacement heavy-duty Class IV auxiliary wide-angle exterior rear-view mirror head assembly (manual adjustment, non-heated specification) for MAN TGL 7.5T–12T commercial distribution trucks, box vans, dropsides, tippers, and municipal vehicles (including 7.150, 8.180, 8.210, 8.220, 10.180, 12.180, and 12.220 models), as well as MAN TGM and TGA cab series.
| Compatible Vehicle Line | MAN TGL 7.5T – 12T Distribution Series (7.150, 8.150, 8.180, 8.210, 8.220, 8.240, 8.250, 10.180, 10.220, 12.180, 12.220, 12.250), MAN TGM & MAN TGA Trucks |
| Mirror Classification | ECE R46 Class IV (Auxiliary Wide-Angle Blind-Spot Vision Device) |
| Placement on Vehicle | Universal / Non-Sided: Fits Both Left-Hand (Nearside / N/S) AND Right-Hand (Offside / O/S) Mirror Support Arms |
| Component Type | Class IV Auxiliary Wide-Angle Mirror Head Complete Assembly (Manual / Non-Heated) |
| Adjustment & Heating Type | Manual Swivel Mechanical Adjustment / Non-Heated (Plain Safety Glass) |
| Glass Specification | Optical-Grade Convex Automotive Safety Glass (Curvature Radius: R300 ECE Approved Wide-Angle) |
| Housing Material & Finish | High-Impact UV-Resistant Engineering Thermoplastic in Factory Textured Matte Black |
| Mounting Interface | Heavy-Duty Clamp Collar Bracket (Clamps Directly to Standard Commercial Ø 28mm Tubular Mirror Arms) |
| Pack / Item Quantity | Sold Individually (Cab Axle Pairs & Fleet Multi-Packs Available) |
| OEM Cross-Reference |
MAN: 85637306037 (85.63730-6037 / 85.63730.6037 / 85-63730-6037), 81637306440 (81.63730-6440), 81637306510, 85637306031 Mekra Lang (OEM): 51.5730.020 / 515730020 Aftermarket Equivalents: DT Spare Parts 3.84024, Febi Bilstein, SAMPA, Unitruck 5013 |
Please Note: All prices listed are subject to VAT @ 20%. This mirror head is the manual non-heated version fitted with a clamp mount for Ø 28mm mirror tubes (if you require the 24V heated version, please see OE 81637306443 / 81637306512). Class IV wide-angle mirrors are legally mandatory on all commercial vehicles over 3.5 tonnes—a cracked, unadjusted, loose, or missing mirror is an automatic DVSA / RSA HGV Annual Roadworthiness Test failure. To confirm 100% correct fitment, please enter your chassis number or vehicle registration at checkout.
