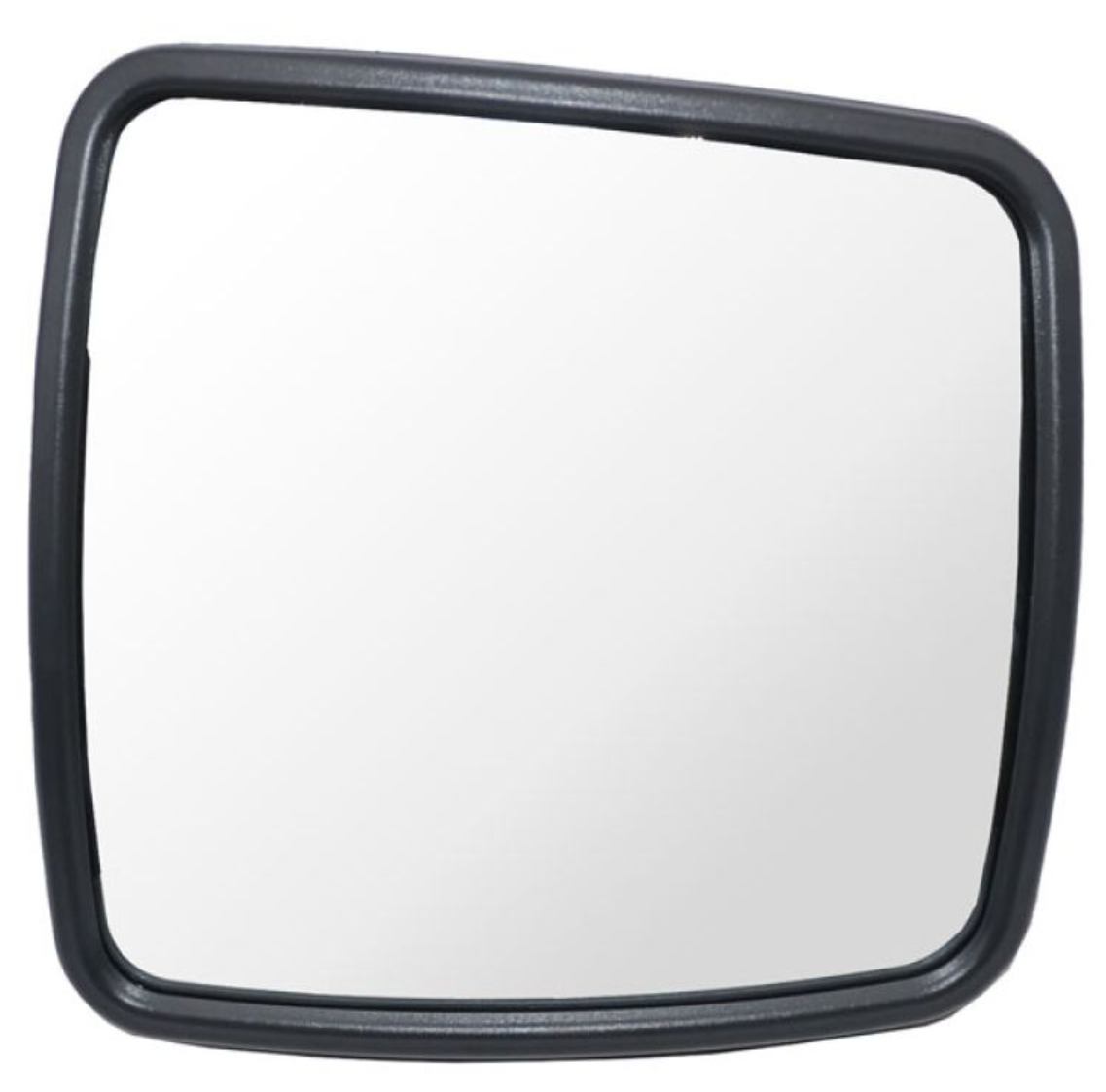

MAN TGL Wide Angle Mirror Head Heated 24V (Universal)
Couldn't load pickup availability
Premium replacement heavy-duty Class IV auxiliary wide-angle exterior rear-view mirror head assembly (24V heated specification) for MAN TGL 7.5T–12T commercial distribution trucks, box vans, dropsides, and tippers (including 7.150, 8.180, 8.210, 8.220, 10.180, 12.180, and 12.220 models), as well as MAN TGM, TGA, TGS, and TGX cab series.
| Compatible Vehicle Line | MAN TGL 7.5T – 12T Distribution Series (7.150, 8.150, 8.180, 8.210, 8.220, 8.240, 8.250, 10.180, 10.220, 12.180, 12.220, 12.250), MAN TGM, MAN TGA, MAN TGS & MAN TGX |
| Mirror Classification | ECE R46 Class IV (Auxiliary Wide-Angle Blind-Spot Vision Device) |
| Placement on Vehicle | Universal / Non-Sided: Fits Both Left-Hand (Nearside / N/S) AND Right-Hand (Offside / O/S) Mirror Support Arms |
| Component Type | Class IV Auxiliary Wide-Angle Mirror Head Complete Assembly (24V Heated / Tube Clamp Fitment) |
| Electrical Heating Specification | Commercial 24V High-Output Thermal Heating Element for Rapid Frost, Ice, and Mist Clearance |
| Glass Specification | Optical-Grade Convex Automotive Safety Glass (Curvature Radius: R300 Wide-Angle ECE Approved) |
| Housing Material & Finish | High-Impact UV-Resistant Engineering Thermoplastic in Factory Textured Matte Black |
| Mounting Interface | Heavy-Duty Clamp Collar Bracket (Clamps Directly to Standard Commercial Ø 28mm Tubular Mirror Arms) |
| Pack / Item Quantity | Sold Individually (Cab Axle Pairs & Complete Mirror Arm Rig Bundles Available) |
| OEM Cross-Reference |
MAN: 85637306039 (85.63730-6039 / 85.63730.6039 / 85-63730-6039), 81637306443 (81.63730-6443), 81637306512, 85637306032 Mekra Lang (OEM): 51.5730.320 / 515730320, 59.3730.201H Aftermarket Equivalents: DT Spare Parts 3.84025, Febi Bilstein 35147, SAMPA 022.062, Unitruck 5013H |
Please Note: All prices listed are subject to VAT @ 20%. Specifically designed for commercial 24V electrical systems. Fitted with an internal 24V heating element and standard clamp collar for Ø 28mm mirror tubes (for the manual non-heated version, see OE 85637306037). Class IV wide-angle mirrors are legally mandatory on all HGVs over 3.5 tonnes—a cracked, unheated, loose, or missing mirror is an automatic DVSA / RSA HGV Annual Roadworthiness Test failure. To confirm 100% correct fitment, please enter your chassis number or vehicle registration at checkout.
