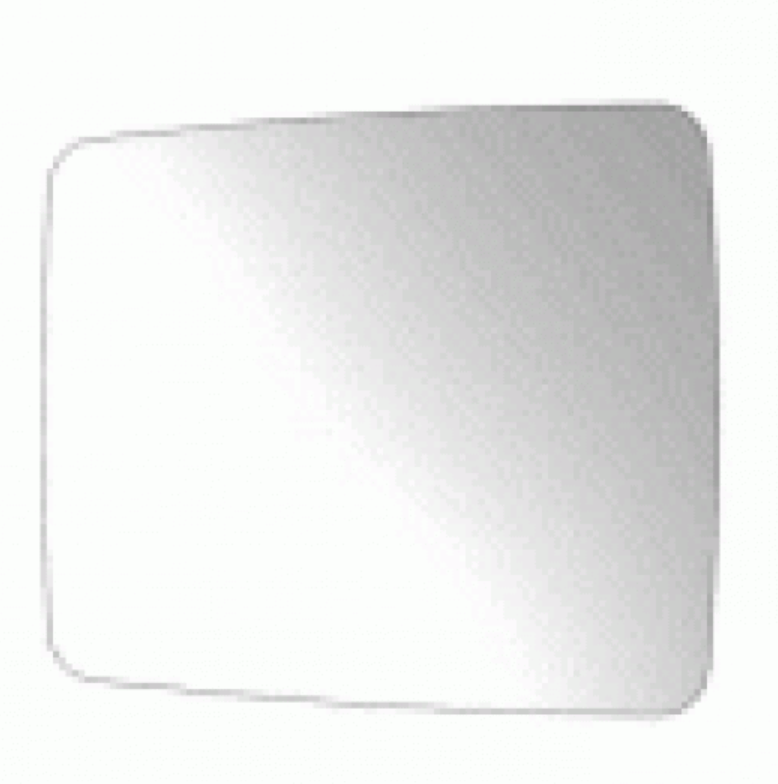

MAN TGL Wide Angle Mirror Glass Heated 24V (Universal)
Couldn't load pickup availability
Premium replacement heavy-duty Class IV auxiliary wide-angle exterior mirror replacement glass (24V heated) for MAN TGL 7.5T–12T commercial distribution trucks, box vans, dropsides, and tippers (including 7.150, 8.180, 8.210, 8.220, 10.180, 12.180, and 12.220 models), as well as MAN TGM, TGA, TGS, and TGX cab series.
| Compatible Vehicle Line | MAN TGL Series (7.150, 8.150, 8.180, 8.210, 8.220, 8.240, 8.250, 10.180, 10.220, 12.180, 12.220, 12.250), MAN TGM, MAN TGA, MAN TGS & MAN TGX |
| Mirror Classification | ECE R46 Class IV (Auxiliary Wide-Angle Blind-Spot Vision Device) |
| Placement on Vehicle | Universal / Non-Sided: Fits Both Left-Hand (Nearside / N/S) AND Right-Hand (Offside / O/S) Wide-Angle Mirror Heads |
| Component Type | Class IV Wide-Angle Mirror Replacement Glass Insert with Pre-Fitted Backing Plate & 24V Heater Grid |
| Electrical Heating Specification | Commercial 24V High-Output Thermal Element with Standard Push-On Spade Terminals |
| Glass Specification & Radius | Optical-Grade Convex Automotive Safety Glass (Curvature Radius: R300 Wide-Angle ECE Approved) |
| Backing Plate Construction | Reinforced Polypropylene Carrier with Dead-Centred Circular Snap-Fit Ring (Rotates 180° for LH or RH Fitment) |
| Mounting Interface | Direct Snap-On Clip Retainer Collar (Mounts Directly to Internal Mirror Shell Pivot Carrier) |
| Pack / Item Quantity | Sold Individually (Cab Axle Pairs & Fleet Multi-Packs Available) |
| OEM Cross-Reference |
MAN: 81637330106 (81.63733-0106 / 81.63733.0106 / 81-63733-0106), 81637330089 (81.63733-0089) Mekra Lang (OEM): 59.3733.201H / 593733201H Aftermarket Equivalents: DT Spare Parts 3.84045, Febi Bilstein 35145, SAMPA 022.073, Unitruck 5012GH |
Please Note: All prices listed are subject to VAT @ 20%. This mirror glass is 100% universal / non-sided and fits either the Left-Hand (Nearside) or Right-Hand (Offside) Class IV wide-angle auxiliary mirror head on 24V commercial vehicles. Pre-assembled with a backing plate and 24V heating element ready for immediate snap-in installation. A cracked, unheated, crazed, or missing wide-angle mirror glass is an automatic DVSA / RSA HGV Annual Roadworthiness Test failure. To confirm 100% correct fitment, please enter your chassis number or vehicle registration at checkout.
