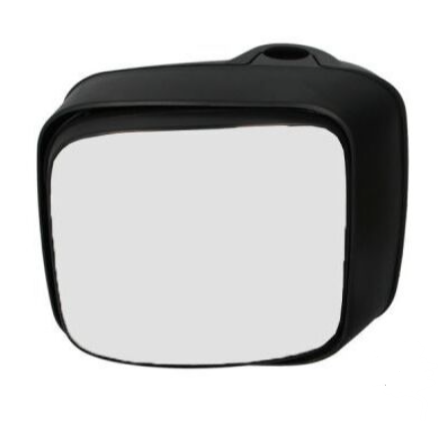

MAN TGL TGM TGA Wide Angle Mirror Head Heated 24V
Couldn't load pickup availability
Premium replacement heavy-duty Class IV wide-angle blind-spot exterior door mirror head assembly (24V heated) for MAN TGL 7.5T–12T commercial distribution trucks (including 7.150, 8.180, 8.210, 8.220, 10.180, 12.180, and 12.220 models), as well as MAN TGM, TGA, TGS, and TGX cab series.
| Compatible Vehicle Line | MAN TGL (7.150, 8.150, 8.180, 8.210, 8.220, 8.240, 8.250, 10.180, 10.220, 12.180, 12.220, 12.250), MAN TGM, MAN TGA, MAN TGS & MAN TGX |
| Mirror Classification | ECE R46 Class IV (Wide-Angle Auxiliary Blind-Spot Vision Device) |
| Placement on Vehicle | Left Hand (Nearside) or Right Hand (Offside) Mirror Bracket Arm Assembly |
| Electrical Heating Specification | 24V High-Output Thermal Element for Rapid Frost, Ice, and Mist Clearance |
| Glass Specification | Convex High-Clarity Automotive Safety Glass (Curvature Radius: R300) |
| Housing Material & Finish | High-Impact UV-Resistant Polypropylene / ABS Composite in Factory Textured Matte Black |
| Mounting Interface | Heavy-Duty Clamp Bracket (Fits Standard Commercial Ø 28mm / Ø 20mm Mirror Tubes) |
| Pack / Item Quantity | Sold Individually (Cab Pairs & Complete Mirror Overhaul Kits Available) |
| OEM Cross-Reference |
MAN: 81637306443 (81.63730-6443 / 81.63730.6443 / 81-63730-6443), 81637306512 (81.63730-6512), 81637306487, 81637306545 Mekra Lang (OEM): 59.3730.201H, 59.3730.200H Aftermarket Equivalents: DT Spare Parts 3.84025, Febi Bilstein 35147, SAMPA 022.062, Unitruck 5013H |
Please Note: All prices listed are subject to VAT @ 20%. Specifically designed for commercial 24V electrical systems. Fitted with an internal 24V heating element and standard tube clamp mount. Class IV wide-angle mirrors are legally mandatory on HGVs over 3.5 tonnes—a cracked, unheated, or missing mirror is an automatic DVSA / RSA HGV Annual Roadworthiness Test failure. To confirm 100% correct fitment, please enter your chassis number or vehicle registration at checkout.
