MAN TGL TGA Main Mirror Glass Heated 24V New Type
Couldn't load pickup availability

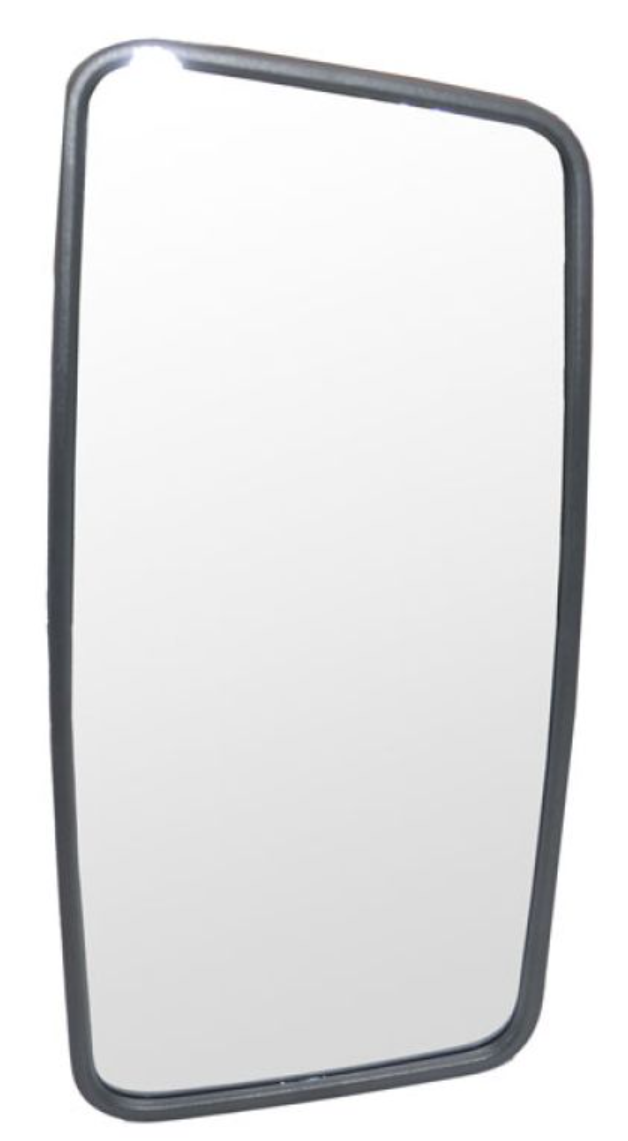

Premium replacement heavy-duty Class II main commercial exterior rear-view mirror replacement glass ("New Type" updated specification, 24V heated) for MAN TGL 7.5T–12T commercial distribution trucks, box vans, dropsides, and tippers (including 7.150, 8.180, 8.210, 8.220, 10.180, 12.180, and 12.220 models), as well as MAN TGM, TGA, TGS, and TGX cab series.
| Compatible Vehicle Line | MAN TGL Series (7.150, 8.150, 8.180, 8.210, 8.220, 8.240, 8.250, 10.180, 10.220, 12.180, 12.220, 12.250), MAN TGM, MAN TGA, MAN TGS & MAN TGX |
| Mirror Classification | ECE R46 Class II (Primary Commercial Main Rear-View Vision Device) |
| Design Generation | "New Type" Modern Style (Updated Mekra 15-Series Actuator Mounting System) |
| Placement on Vehicle | Universal / Non-Sided: Fits Both Left-Hand (Nearside / N/S) AND Right-Hand (Offside / O/S) Mirror Assemblies |
| Component Type | Main Mirror Replacement Glass Insert with Pre-Fitted Backing Plate & 24V Heating Grid |
| Electrical Heating Specification | Commercial 24V High-Output Thermal Element with Reversible 2-Pin Push-On Spade Terminals |
| Glass Specification | Optical-Grade Convex Safety Glass (ECE R46 Approved Class II Curvature) |
| Backing Plate Construction | Reinforced ABS Composite Carrier with Updated "New Type" Central Snap-Fit Locking Mechanism |
| Mounting Interface | Direct Snap-On Clip Retention (Mounts to Internal Motorized Actuator on Either Side) |
| Pack / Item Quantity | Sold Individually (Cab Axle Pairs & Fleet Multi-Packs Available) |
| OEM Cross-Reference |
MAN: 81637336049, 81637336033 (81.63733-6049 / 81.63733.6049 / 81-63733-6049) Mekra Lang (OEM): 15.3920.840H / 153920840H Unitruck: UT6042 / 6042 / 6042GH Aftermarket Equivalents: DT Spare Parts, Febi Bilstein, SAMPA |
Please Note: All prices listed are subject to VAT @ 20%. This unit is the "New Type" 24V heated universal glass designed for newer style mirror head assemblies (Mekra 15.3920 platform). Please check the rear clip pattern against earlier "Old Type" glasses (OE 81637330101 / 81637330103 / Mekra 59-Series) before ordering. A cracked, crazed, unheated, or missing main mirror glass is an automatic DVSA / RSA HGV Annual Roadworthiness Test failure. To confirm 100% correct fitment, please enter your chassis number or vehicle registration at checkout.
