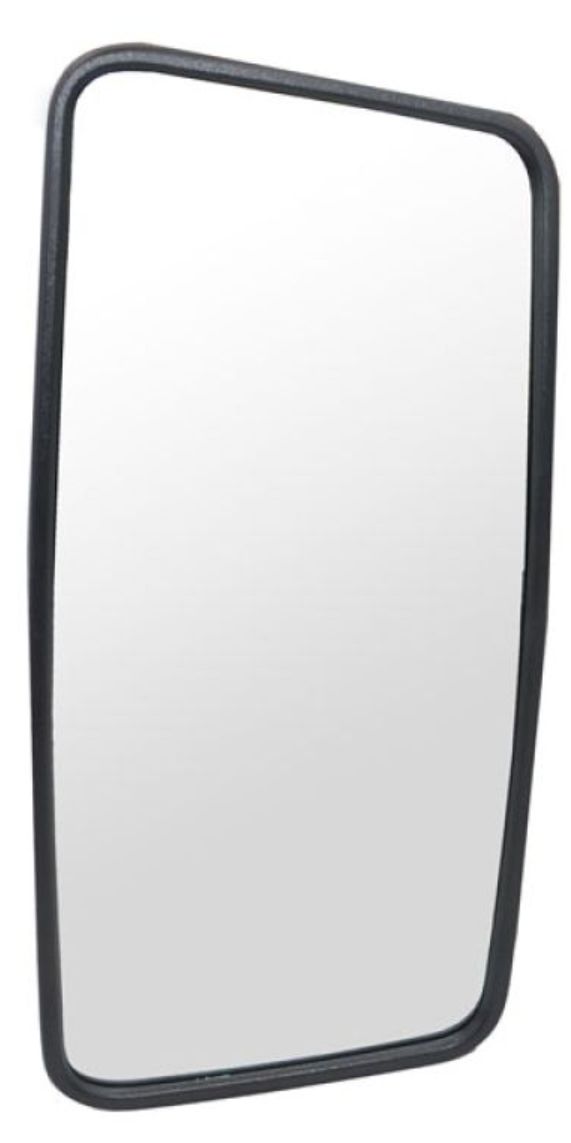

MAN TGL Main Mirror Head Heated 24V (TGL/TGM/TGA)
Couldn't load pickup availability
Premium replacement heavy-duty Class II main commercial exterior rear-view mirror head assembly (24V heated specification) for MAN TGL 7.5T–12T commercial distribution trucks, box vans, dropsides, and tippers (including 7.150, 8.180, 8.210, 8.220, 10.180, 12.180, and 12.220 models), as well as MAN TGM, TGA, TGS, and TGX cab series.
| Compatible Vehicle Line | MAN TGL 7.5T – 12T Series (7.150, 8.150, 8.180, 8.210, 8.220, 8.240, 8.250, 10.180, 10.220, 12.180, 12.220, 12.250), MAN TGM, MAN TGA, MAN TGS & MAN TGX |
| Mirror Classification | ECE R46 Class II (Primary Commercial Main Rear-View Vision Device) |
| Placement on Vehicle | Universal / Non-Sided: Fits Both Left-Hand (Nearside / N/S) AND Right-Hand (Offside / O/S) Mirror Support Arms |
| Component Type | Main Rear-View Mirror Head Complete Assembly (24V Heated / Tube Clamp Fitment) |
| Electrical Heating Specification | Commercial 24V High-Output Thermal Element for Rapid De-Icing and Mist Clearance |
| Glass Specification | Optical-Grade Convex Automotive Safety Glass (Curvature Radius: R1200 ECE Approved) |
| Housing Material & Finish | High-Impact UV-Resistant Engineering Thermoplastic in Factory Textured Matte Black |
| Mounting Interface | Heavy-Duty Clamp Collar Bracket (Clamps Directly to Standard Commercial Ø 28mm Tubular Mirror Arms) |
| Pack / Item Quantity | Sold Individually (Cab Axle Pairs & Complete Mirror Arm Rig Bundles Available) |
| OEM Cross-Reference |
MAN: 85637306033 (85.63730-6033 / 85.63730.6033 / 85-63730-6033), 81637306442 (81.63730-6442), 81637306511 Mekra Lang (OEM): 51.5720.320 / 515720320, 59.3730.101H Aftermarket Equivalents: DT Spare Parts 3.84021, Febi Bilstein 35146, SAMPA 022.061, Unitruck 5010H |
Please Note: All prices listed are subject to VAT @ 20%. This mirror head is the 24V heated specification with clamp mounting for Ø 28mm tubular arms (for the non-heated manual version, see OE 85637306030). A cracked, unheated, loose, or missing main rear-view mirror is an automatic DVSA / RSA HGV Annual Roadworthiness Test failure. To confirm 100% correct fitment, please enter your chassis number or vehicle registration at checkout.
