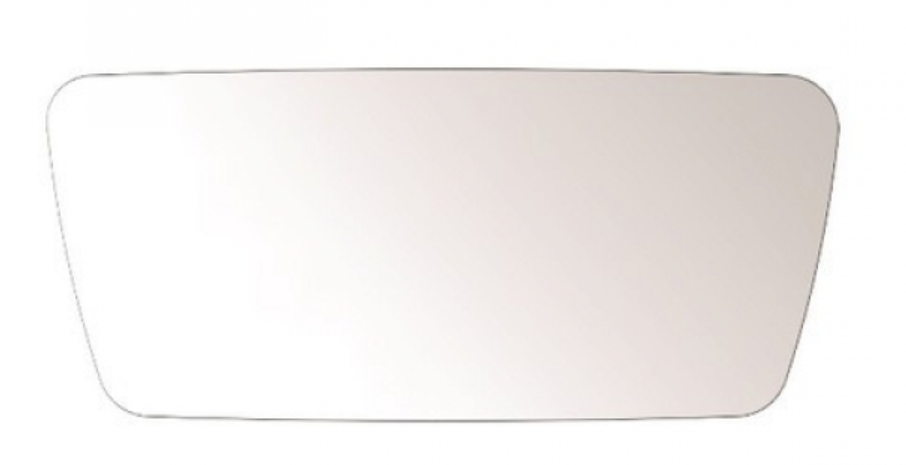

MAN TGL Main Mirror Glass Left or Right
Couldn't load pickup availability
Premium replacement heavy-duty Class II main commercial exterior rear-view mirror replacement glass for MAN TGL 7.5T–12T commercial distribution trucks, box vans, dropsides, and tippers (including 7.150, 8.180, 8.210, 8.220, 10.180, 12.180, and 12.220 models), as well as MAN TGM, TGA, TGS, and TGX cab series. Engineered with a symmetrical optical profile and a central snap-fit retention ring, this unit is 100% universal / non-sided, fitting either the Left-Hand (Nearside / Passenger Side) or Right-Hand (Offside / Driver Side) main mirror head.
| Compatible Vehicle Line | MAN TGL Series (7.150, 8.150, 8.180, 8.210, 8.220, 8.240, 8.250, 10.180, 10.220, 12.180, 12.220, 12.250), MAN TGM, MAN TGA, MAN TGS & MAN TGX |
| Mirror Classification | ECE R46 Class II (Primary Commercial Main Rear-View Vision Device) |
| Placement on Vehicle | Universal / Non-Sided: Fits Both Left-Hand (Nearside / N/S) AND Right-Hand (Offside / O/S) Mirror Assemblies |
| Component Type | Main Mirror Replacement Glass Insert with Pre-Fitted Symmetrical Backing Plate |
| Electrical Heating Specification | Commercial 24V High-Output Demister Element with Reversible Non-Polarised 2-Pin Spade Terminals |
| Glass Specification & Dimensions | High-Clarity Convex Automotive Safety Glass (Approx. 410mm x 205mm, Curvature Radius: R1200 / R1800 Standard) |
| Backing Plate Construction | Reinforced Polypropylene Carrier with Dead-Centred Circular Snap-Fit Ring (Rotates 180° for LH or RH Fitment) |
| Mounting Interface | Direct Snap-On Clip Collar (Mounts Directly to Internal Manual or Motorized Actuator Frame on Either Side) |
| Pack / Item Quantity | Sold Individually (Cab Axle Pairs & Fleet Multi-Packs Available) |
| OEM Cross-Reference |
MAN: 81637330101 (81.63733-0101 / 81.63733.0101 / 81-63733-0101), 81637330087 (81.63733-0087) Mekra Lang (OEM): 59.3733.101H / 593733101H Aftermarket Equivalents: DT Spare Parts 3.84042, Febi Bilstein 35144, SAMPA 022.072, Unitruck 5011GH |
Please Note: All prices listed are subject to VAT @ 20%. This mirror glass is completely non-sided (universal) and fits either the Left-Hand (Nearside) or Right-Hand (Offside) main Class II mirror housing on 24V commercial vehicles. A cracked, crazed, unheated, or missing main mirror glass is an automatic DVSA / RSA HGV Annual Roadworthiness Test failure. To confirm 100% correct fitment, please enter your chassis number or vehicle registration at checkout.
